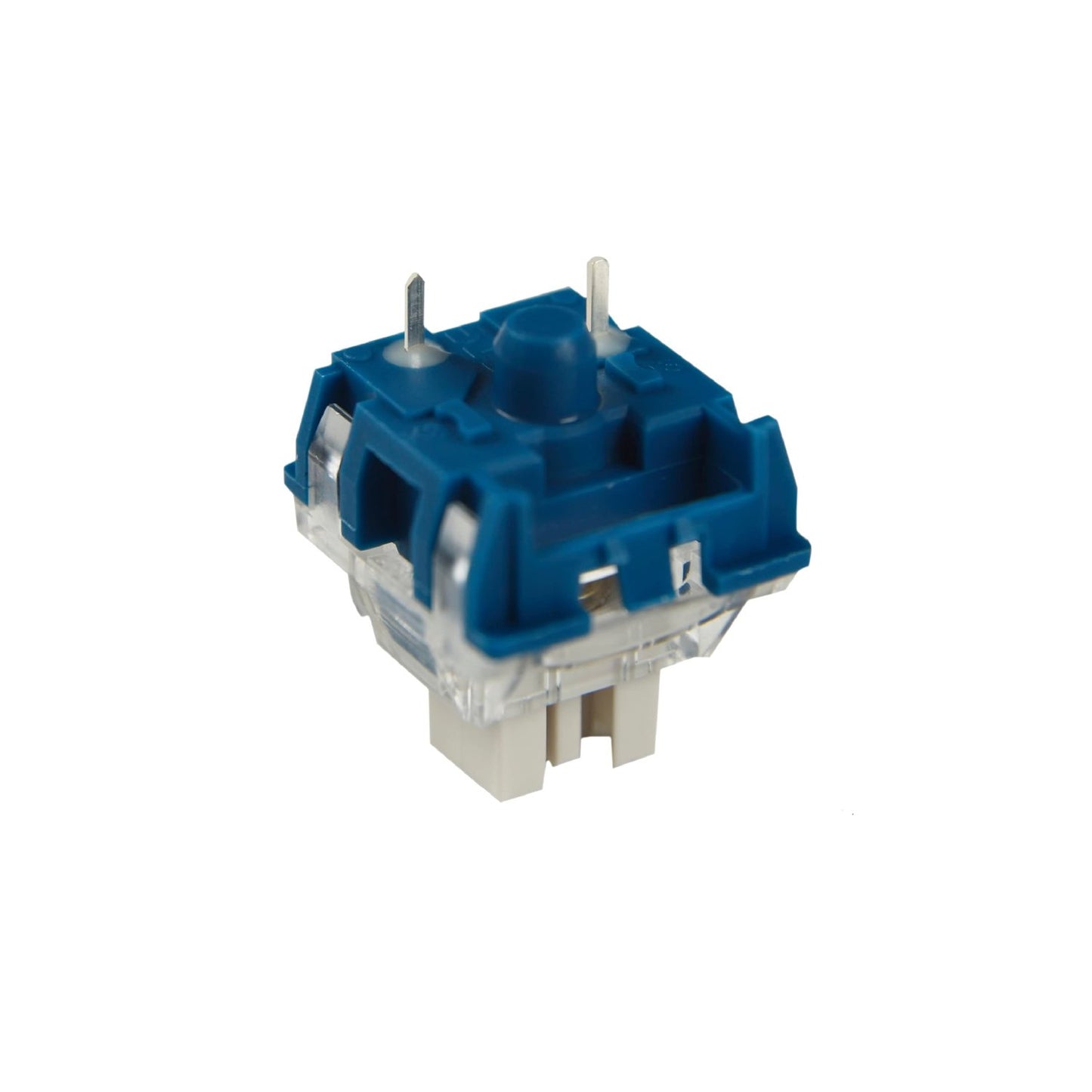

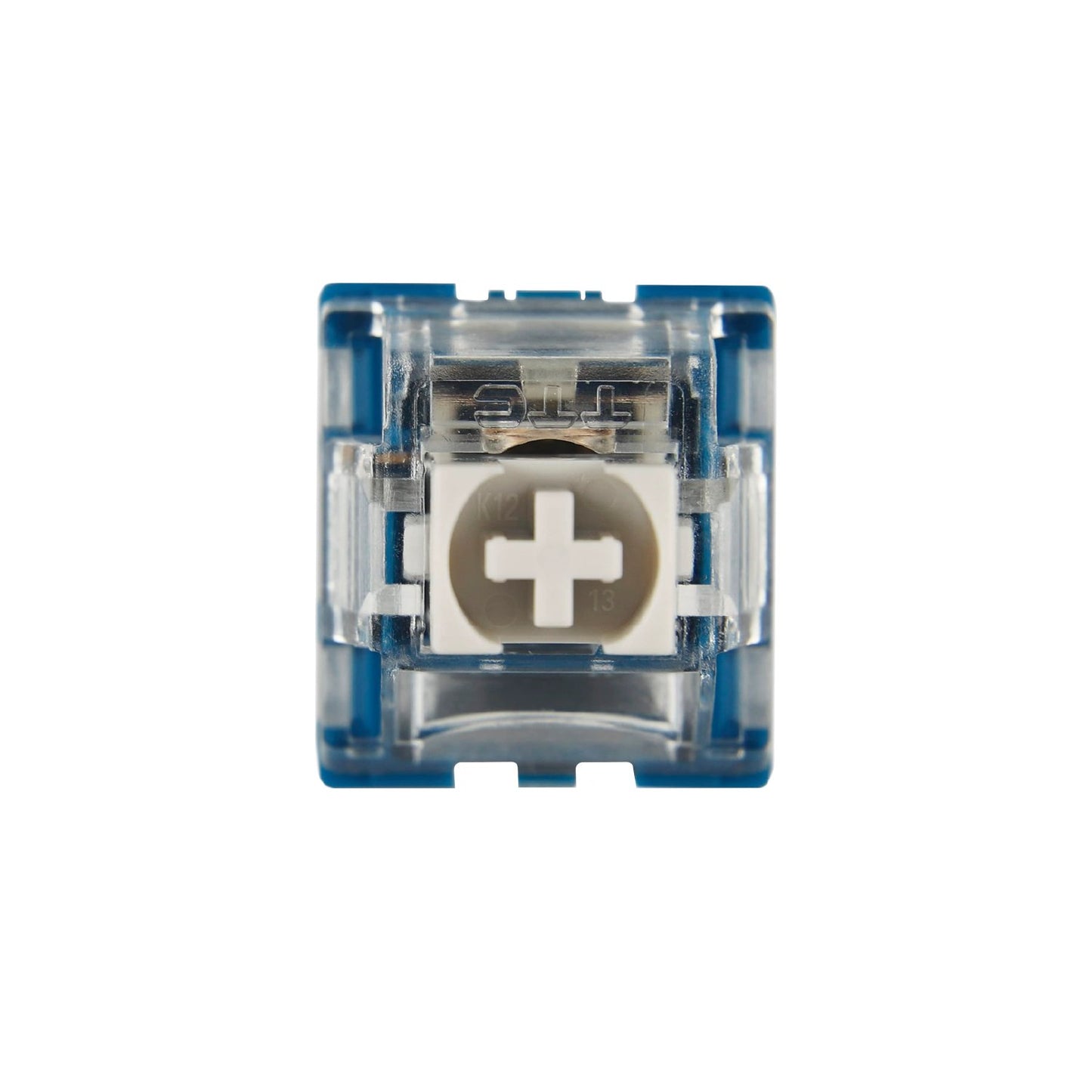

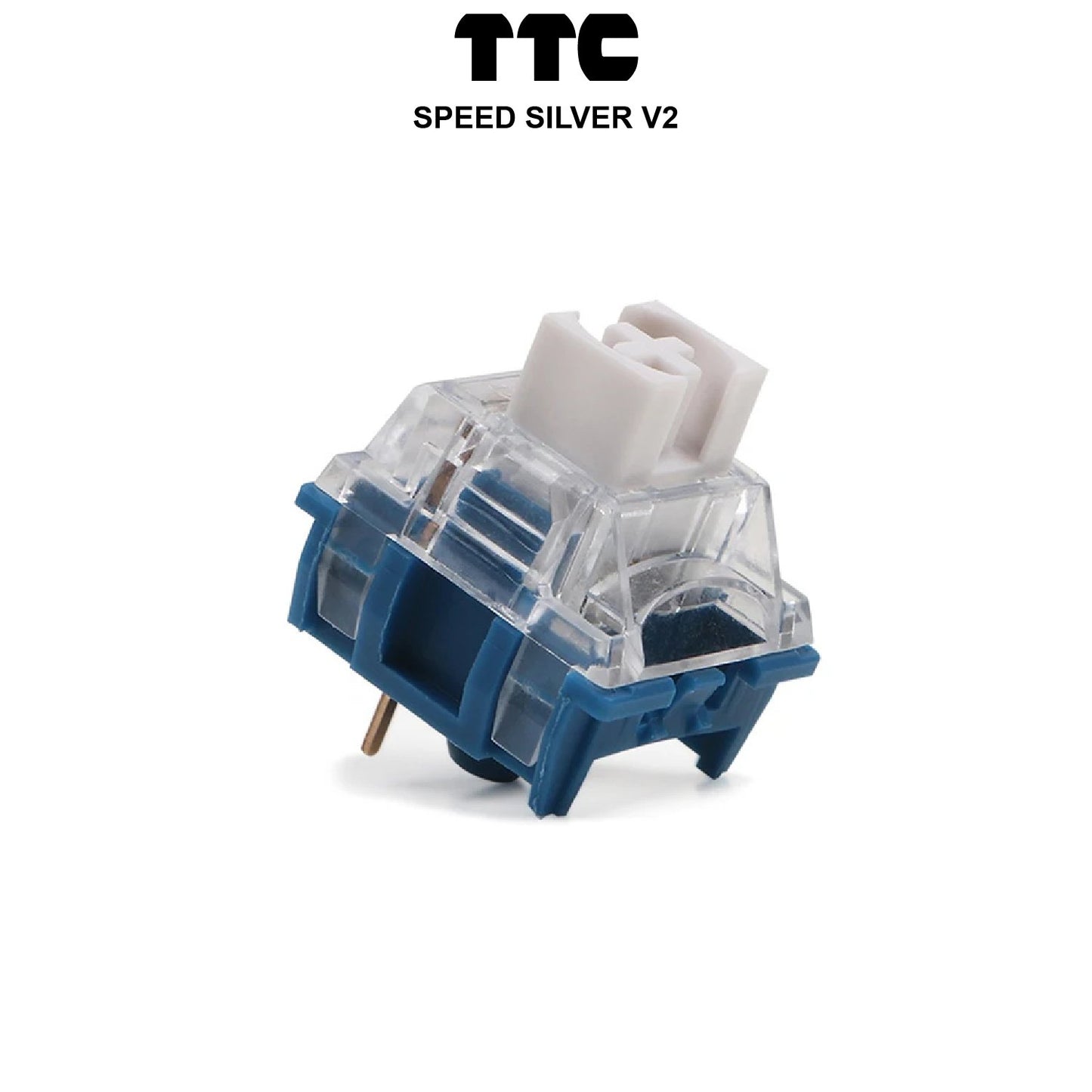

TTC Speed Silver V2

• TTC Speed Silver V2（3 pin linear），Total travel：3.4±0.4mm，Conduction stroke：1.08+0.4/-0.2mm，Press the initial pressure：39gf，Conduction pressure：45±4gf，Mechanical Life：100 million times，21mm silver 2 stage spring.
• Speed Silver V2 switch can support ordinary RGB and Underglow SMD LED at the same time, Compared with V1, the silver-plated pins are upgraded, and the smoothness is improved.
• Increase the lower limit of conduction stroke In order to further reduce the probability of false touches, TTC increased the theoretical lower limit conduction stroke to 0.88MM(1.08+0.4/-0.2MM) from traditional silver switch 0.8MM(1.2+-0.4MM), Increase the range by 10%. Thereby reducing the probability of light touch by false.
• By adopting the TTC-featured double long spring structure design, the accuracy of spring force is improved, and the rebound is reduced under the condition of optimizing the rebound.
• Pressure tolerance, the lower limit of the traditional silver switch conduction pressure is increased from 30GF (45±15GF) to 41GF (45±4GF), an increase of 36%.Thereby, the chance of false touch caused by the light touch of the finger is greatly reduced, and the effect is immediate.

Specification

• Linear switch
• 45±4gf operating force
• 1.08+0.4/-0.2mm pre travel
• 3.4-0.4mm total travel
